[诊断] 小肺腺癌的影像学分类

  [复制链接]
胸有朝阳 发表于 2023-5-4 14:00:53 | 显示全部楼层 |阅读模式

马上注册,阅读更多内容,享用更多功能!

您需要 登录 才可以下载或查看,没有账号?立即注册

×


The solid (or consolidation) component was defined as an area of increased opacification more than 5 mm in diameter, which completely obscured underlying vascular markings.
实性成分被定义为直径>5mm的阴影密度增高影,完全遮盖其下的血管影。

Ground-glass opacity was defined as an area of a slight, homogeneous increase in density, which did not obscure underlying vascular markings.

Semiconsolidation was defined as an area of an intermediate homogeneous increase in density, which did not obscure underlying vascular markings.

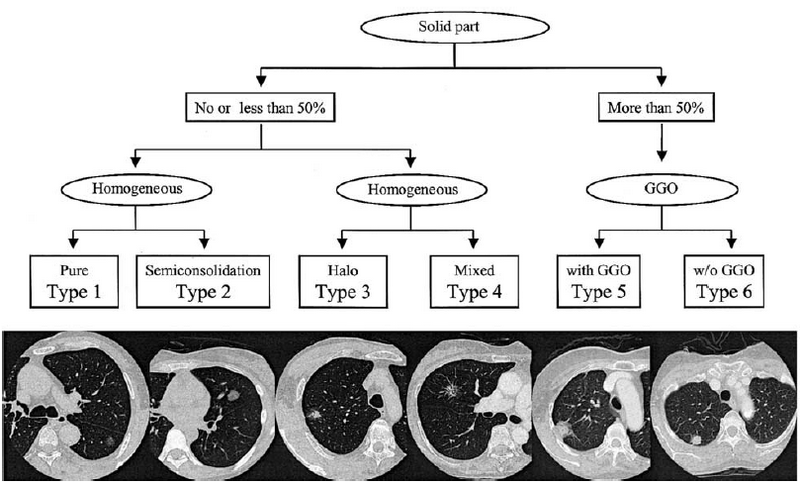

Fig 1. Flow chart for the new classification of small adenocarcinoma of the lung. (GGO:  ground-glass opacity; w/o : without.)




Suzuki K, Kusumoto M, Watanabe S, Tsuchiya R, Asamura H. Radiologic classification of small adenocarcinoma of the lung: radiologic-pathologic correlation and its prognostic impact. Ann Thorac Surg. 2006 Feb;81(2):413-9. doi: 10.1016/j.athoracsur.2005.07.058. PMID: 16427823.
